Air Supply Cyclone Pro Liner Vac & Blower - 41281002
Air Supply Cyclone Pro 3 HP Liner Vac & Blower
Professional-grade airflow for blowing out pool lines, winterizing plumbing, and pulling vinyl liners tightly into place during installation.
Ultimate Pools Product Support
Built for demanding pool service applications
Ultimate Pools can help confirm the correct hose, fitting, and setup requirements for pool winterizing or vinyl liner installation before purchase.

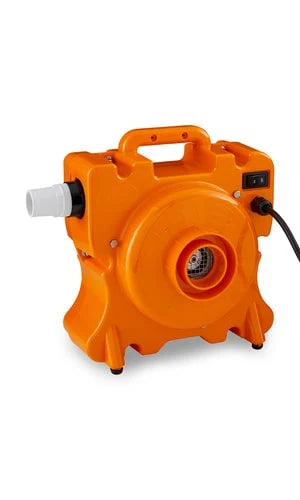

The Air Supply Cyclone Pro Liner Vac & Blower (41281002) is a high-output 3 HP, two-stage bypass blower designed specifically for swimming pool service work.
It can be used as a powerful pool winterizing blower to force water from plumbing lines before freeze-up, and as a liner vacuum to remove air from behind a vinyl liner during installation so the liner pulls tightly into place.
With up to 140 CFM open airflow and 180 inches of sealed water-column pressure, the Cyclone Pro delivers the airflow and pressure required for demanding residential and professional pool applications.
Main Features
High-output motor provides the airflow and pressure needed for demanding pool-service applications.
Ideal for blowing water from pool plumbing lines before winter shutdown and freeze protection.
Creates the vacuum needed to remove air from behind a liner and help seat it smoothly during installation.
Produces up to 140 CFM open airflow and 180" of sealed water-column pressure.
Dual-size inlet accepts 4" flex hose or 2" PVC, with a 1.5" threaded outlet for common pool-service fittings.
Compact housing, carrying handle, removable brush cover, and long-life motor brushes support regular field use.
Best For
- Blowing out pool plumbing lines during seasonal winterization
- Vinyl liner installation and replacement
- Pool service professionals and experienced DIY pool owners
- Applications requiring more pressure than a typical shop vacuum can provide
- Service setups using 4" flex hose, 2" PVC, or 1.5" threaded fittings
Specifications
| Model / SKU | 41281002 |
| Brand | Air Supply |
| Product Type | Pool Winterizing Blower / Liner Vacuum |
| Motor | 3 HP, two-stage bypass |
| Electrical | 120 V, 14 A |
| Open Airflow | Up to 140 CFM |
| Sealed Pressure | 180" water column |
| Inlet | 4" flex hose / 2" PVC |
| Outlet | 1.5" threaded |
| Included Adapter | 1.5" threaded hose adapter |
| Power Cord | 6 ft grounded cord |
| Dimensions | 13" L x 9.25" W x 13.5" H |
| Weight | 14 lb |
Frequently Asked Questions
Yes. It is designed to provide the airflow and pressure needed to blow water from pool plumbing lines as part of a proper winterization procedure.
Yes. The blower can be used as a liner vacuum to remove air from behind a vinyl liner and help pull the liner into position during installation.
No. The unit includes a 1.5" threaded hose adapter, but hoses and application-specific fittings may be required depending on your pool and service setup.
The Cyclone Pro operates on 120 V and draws approximately 14 A. Use an appropriately rated circuit and extension setup where required.
Yes. Ultimate Pools can help confirm hose sizing, fittings, winterizing connections, and liner-installation setup requirements before purchase.
