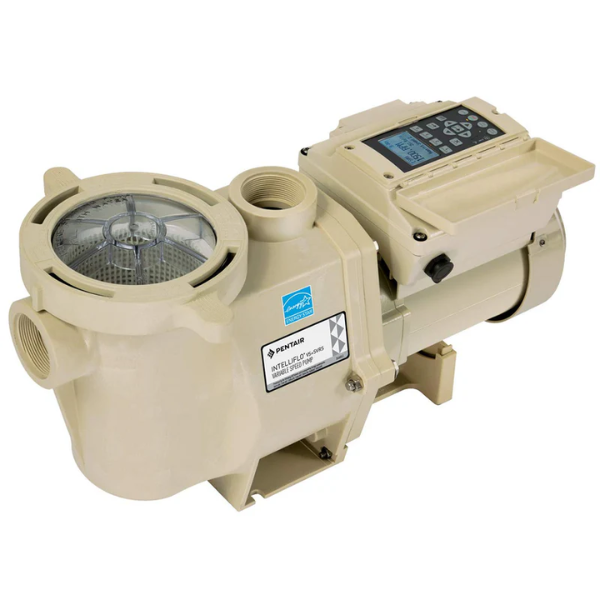

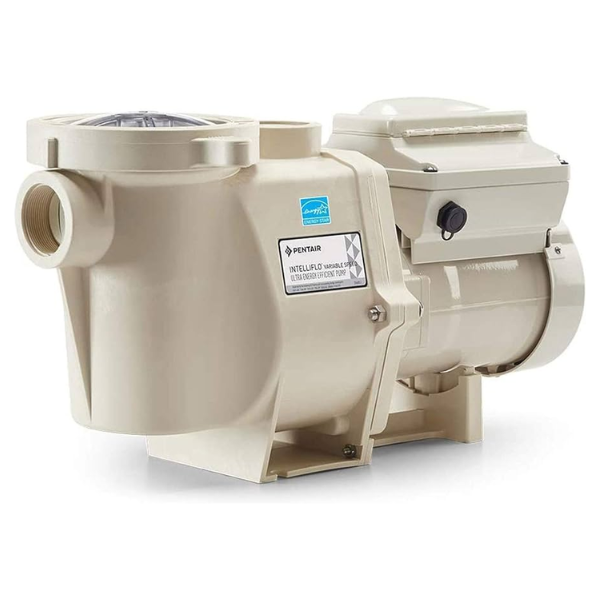

Pentair IntelliFlo Variable Speed + SVRS High Performance Pool Pump
Variable Speed Pump
Product Inquiry
Have a question? We’d love to help out. Use the form below and we will respond back as soon as possible.
The Pentair IntelliFlo Variable Speed + SVRS High Performance Pool Pump is a cutting-edge swimming pool pump that combines energy efficiency, advanced safety features, and exceptional performance.
Key Features:
- Variable speed technology with 8 programmable speed settings
- Built-in Safety Vacuum Release System (SVRS)
- Energy Star certified, saving up to 90% on energy costs
- Ultra-quiet operation at just 45 decibels
- Totally Enclosed Fan-Cooled (TEFC) permanent magnet motor
- Intuitive rotatable keypad with optional wall mount
- Compatible with Pentair automation systems
Benefits:
- Significant energy savings, potentially reducing utility bills by hundreds of dollars annually
- Enhanced pool safety with automatic pump shut-off in case of drain blockage
- Customizable speeds for various pool functions, optimizing performance and efficiency
- Whisper-quiet operation for a peaceful poolside environment
- Extended pump life due to advanced motor technology and built-in protections
- Easy programming and monitoring with user-friendly interface
Application:
The IntelliFlo VS+SVRS pump is ideal for residential pools and spas of various sizes. It excels in applications requiring:
- Filtration
- Heating
- Cleaning
- Spa jets
- Water features
- And more
Its variable speed capability allows for precise flow control, making it suitable for a wide range of pool equipment and features.
Installation:
- Requires 230V single-phase power supply
- 2-inch inlet and outlet connections
- Minimum 5 feet distance from pool's inner wall (3 meters for Canadian installations)
- Compatible with IntelliTouch, EasyTouch, and SunTouch automation systems
- Can be easily integrated into existing pool setups or new installations
Technical Specs:
- Horsepower: 3 HP
- Voltage: 230V single-phase
- Frequency: 50/60 Hz
- Full Load Amps: 12.4-11.2 A
- Maximum Flow Rate: 140 gal/min
- Minimum Flow Rate: 20 gal/min
- Port Size: 2", 2.5", or 3" NPT
- Weight: 53 pounds
- Wattage: 3200 watts
- Service Factor: 1.32
- Service Factor HP: 3.95
- Weighted Energy Factor (WEF): 6.9
- Total Horsepower (THP): 3.95
