Rheem/Raypak 010059F Copper Tube Bundle for 206A/207A Heaters
Raypak 010059F Copper Tube Bundle – 206A / 207A
OEM copper tube bundle kit for compatible Raypak and Rheem 206A / 207A pool heaters with polymer headers.
Warranty Information
Manufacturer Warranty Applies
Warranty coverage is subject to Raypak / Rheem terms, proper installation, application, and water chemistry. Ultimate Pools is your first point of contact for product support and warranty assistance.

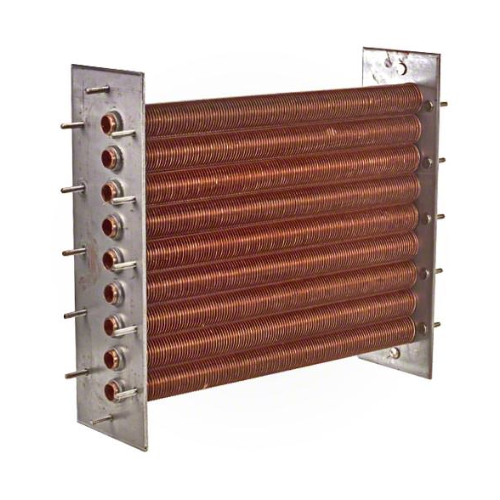

The Raypak 010059F Copper Tube Bundle is a genuine OEM replacement heat exchanger tube bundle designed for compatible Raypak and Rheem 206A and 207A pool heaters equipped with polymer headers.
This copper tube bundle is the primary heat-transfer component inside the heater. It is intended for replacement when the existing bundle has failed, developed a leak, become severely scaled, or otherwise requires service. Always verify the heater model, header type, and existing heat exchanger material before ordering.
Key Features
OEM replacement tube bundle manufactured for compatible Raypak and Rheem heaters.
Provides the primary heat-transfer surface between the burner and circulating pool water.
Designed for the applicable 206A / 207A heater configuration using polymer headers.
Applicable to compatible electronic ignition, millivolt, and Low NOx heater configurations.
Tube bundle selection is based on heater model and exchanger construction, not fuel type alone.
Confirm your exact heater model and existing part before purchase.
Compatibility
- Raypak / Rheem 206A Electronic Ignition Heaters
- P-R206A-EN-C
- P-R206A-EP-C
- Raypak / Rheem 206A Millivolt Heaters
- P-R206A-MN-C
- P-R206A-MP-C
- Raypak / Rheem 207A Low NOx Heaters
- P-R207AL-EN-C
Important: This copper tube bundle is not intended for cupronickel heat exchanger applications. On applicable Raypak model numbers, suffix “C” identifies copper construction and suffix “X” identifies cupronickel construction. Always verify the rating plate before ordering.
Important Service Note
Raypak advises that conditions which cause a tube bundle to fail may also affect the heater bypass valve and Unitherm Governor. These components should be inspected during tube bundle replacement to help prevent premature failure of the new exchanger.
Specifications
| SKU | 010059F |
| Brand | Raypak / Rheem |
| Part Type | Copper Tube Bundle / Heat Exchanger |
| Compatible Series | 206A / 207A |
| Header Type | Polymer |
| Heat Exchanger Material | Copper |
| Fuel Compatibility | Natural Gas or Propane, where listed heater configuration applies |
| Return Policy | Final Sale |
Manufacturer Manual
View the Raypak / Rheem 206A–406A Installation & Operation Manual
Frequently Asked Questions
It is designed for compatible Raypak and Rheem 206A / 207A heaters with polymer headers and copper heat exchanger construction. Verify the exact model before ordering.
010059F is the copper tube bundle used within the compatible heater heat exchanger assembly. Confirm included components and required service parts before installation.
No. Copper and cupronickel configurations use different replacement parts. Match the replacement exchanger material to the heater configuration.
The tube bundle can be used with listed natural gas or propane heater configurations. Heater model, header type, and exchanger material are the primary compatibility checks.
Send Ultimate Pools the full heater model and serial number before ordering. We are based in Oakville, Ontario and ship pool equipment and replacement parts across Canada.
