Rheem/Raypak Copper Tube Bundle 010061F - for 336A/337A Heaters
Raypak Copper Tube Bundle – 336A / 337A
OEM copper tube bundle kit for compatible Raypak and Rheem 336A / 337A residential pool heaters with polymer headers.
Warranty Information
1-Year Manufacturer Warranty
Ultimate Pools is your first point of contact for compatibility verification, installation guidance, and warranty support.

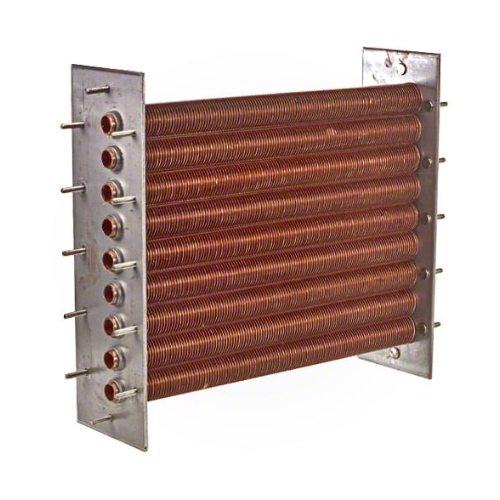

The Rheem/Raypak Cooper Tube Bundle (010061F) is a genuine OEM replacement heat exchanger tube bundle designed for compatible Raypak and Rheem 336A and 337A residential pool heaters equipped with polymer headers.
This copper tube bundle is the primary heat-transfer component inside the heater. It is intended for replacement when the existing bundle has failed, developed a leak, become severely scaled, or otherwise requires service. Always verify the heater model, residential polymer-header configuration, and existing heat exchanger material before ordering.
Key Features
OEM replacement tube bundle manufactured for compatible Raypak and Rheem heaters.
Provides the primary heat-transfer surface between the burner and circulating pool water.
Designed for applicable residential 336A / 337A heater configurations using polymer headers.
Applicable to compatible electronic ignition, millivolt, and Low NOx heater configurations.
Tube bundle selection is based on heater model and exchanger construction, not fuel type alone.
Confirm your exact heater model and existing part before purchase.
Compatibility & Fitment
The Raypak / Rheem Copper Tube Bundle (010061F) is designed for compatible residential pool heaters with polymer headers and copper heat exchangers, including the following models:
- Raypak/Rheem 336A Electronic Ignition Heaters: P-R336A-EN-C, P-R336A-EP-C.
- Raypak/Rheem 336A Millivolt Ignition Heaters: P-R336A-MN-C, P-R336A-MP-C.
- Raypak/Rheem 337A Low NOx Heaters: P-R337AL-EN-C.
Important: Part 010061F is intended for residential polymer-header applications. Commercial / ASME heaters equipped with metal headers require different tube bundles and are not interchangeable.
Heat Exchanger Material: This copper tube bundle is not intended for cupronickel heat exchanger applications. Verify the complete heater model, header construction and heat exchanger material using the heater rating plate before ordering.
Compatibility may vary by production year, configuration and installation. Verify your exact model and part number before ordering.
Important Service Note
Raypak advises that conditions which cause a tube bundle to fail may also affect the heater bypass valve and Unitherm Governor. These components should be inspected during tube bundle replacement to help prevent premature failure of the new exchanger.
Specifications
| SKU | 010061F |
| Brand | Raypak / Rheem |
| Part Type | Copper Tube Bundle / Heat Exchanger |
| Compatible Series | 336A / 337A |
| Application | Residential |
| Header Type | Polymer |
| Heat Exchanger Material | Copper |
| Fuel Compatibility | Natural Gas or Propane, where listed heater configuration applies |
| Warranty | 1-Year Manufacturer Warranty |
| Return Policy | Final Sale |
| Manual | Download Product Manual |
Frequently Asked Questions
It is designed for compatible residential Raypak and Rheem 336A / 337A heaters with polymer headers and copper heat exchanger construction. Verify the exact model before ordering.
No. Commercial / ASME configurations with metal headers use different tube bundles. Confirm that your heater is a residential polymer-header model.
Do not substitute this copper bundle without confirming the correct replacement configuration. Raypak lists separate cupronickel tube-bundle part numbers for these heater families.
The tube bundle can be used with listed natural gas or propane heater configurations. Heater model, header type, application, and exchanger material are the primary compatibility checks.
Send Ultimate Pools the full heater model and serial number before ordering. We are based in Oakville, Ontario and ship pool equipment and replacement parts across Canada.
